How to install roller blinds - Inside fit
Follow this method to measure your windows for all our blinds – rollers, venetians, verticals and honeycombs blinds.
What you need
-
Pencil
-
Tape measure
-
Electric screwdriver
-
#2 square drive

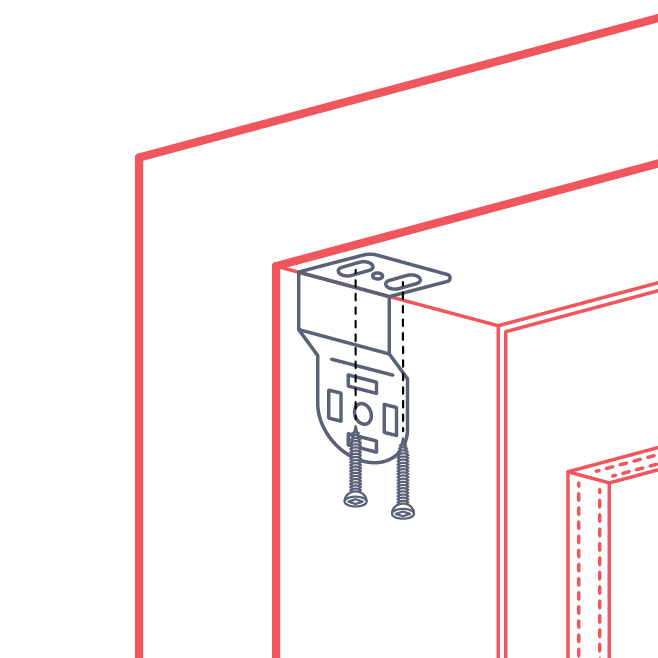

Step 1
1 x universal end bracket
2 x screws
Decide how far back in the sill you want your blind to sit and fix one universal end bracket inside the window frame in the top left hand corner of the window using two of the screws provided.

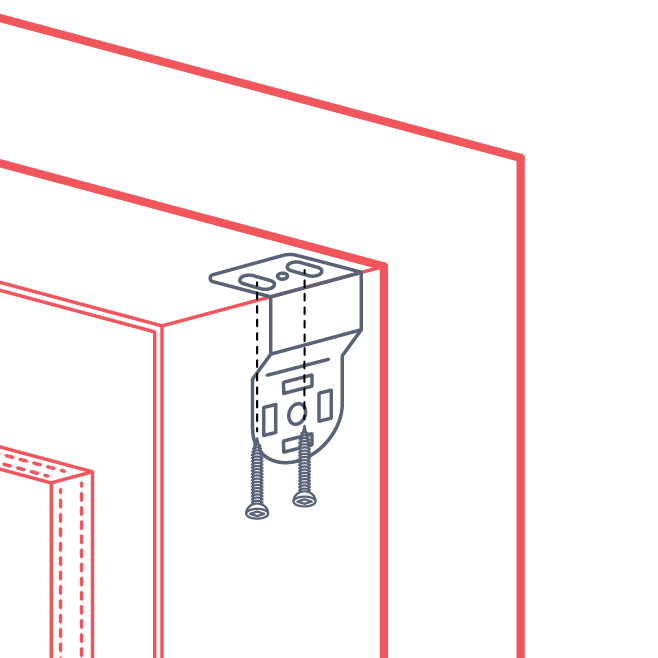

Step 2
1 x universal end bracket
2 x screws
Repeat step 1 on the right side of the window measuring the same distance back from the front of the frame.
Record on your sheet if this is a single or pair of curtains on this track.

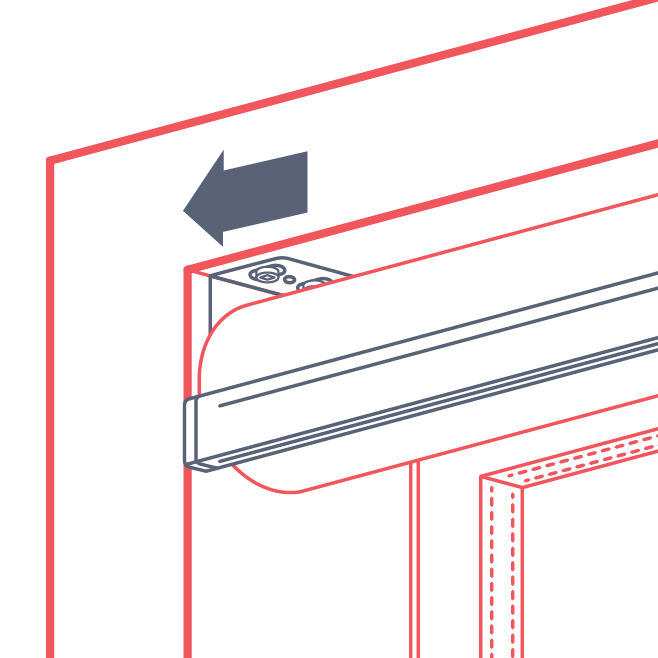

Step 3
Lift the blind up to the window with the controls on the side selected when ordering.
Place the spring pin-end into the bracket first (the opposite end to the chain).
Tip: Always handle blinds with clean hands to avoid leaving marks or damaging the material.

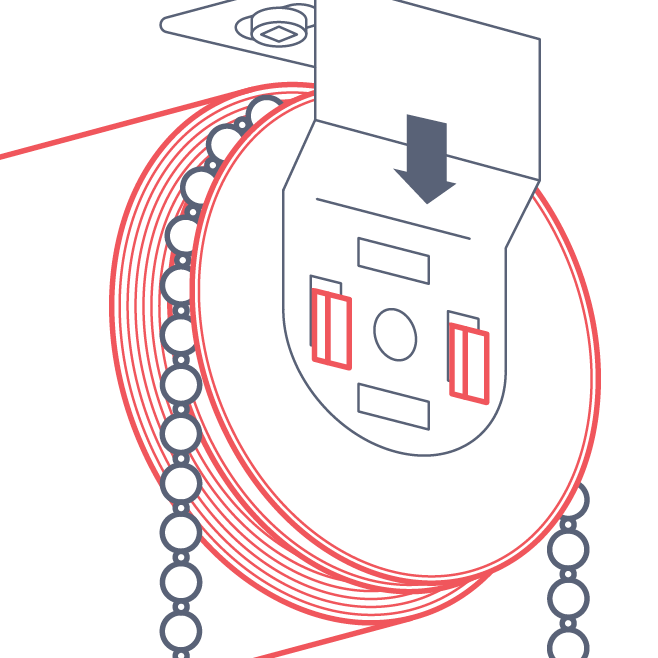

Step 4
Applying pressure toward the pin end (to depress the pin), move the chain end of the blind into the bracket.
Pull down gently until the hooks set into the bracket.

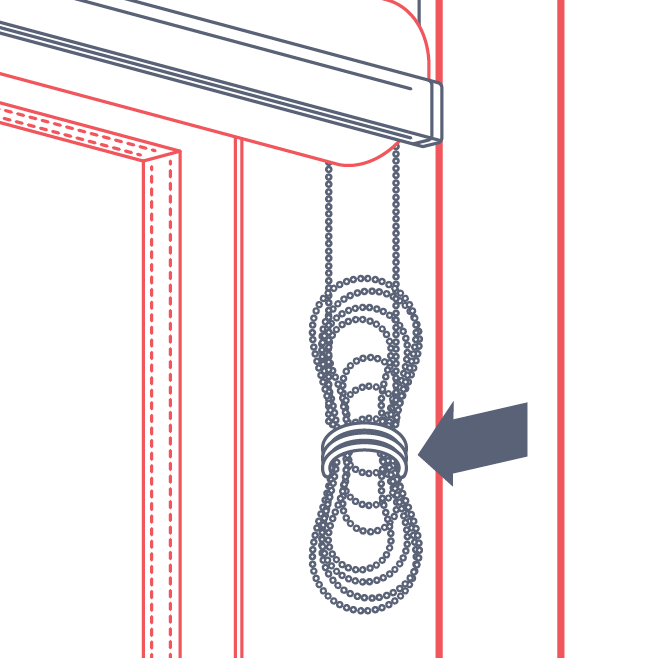

Step 5
Remove the rubber band from the chain to operate the blind.

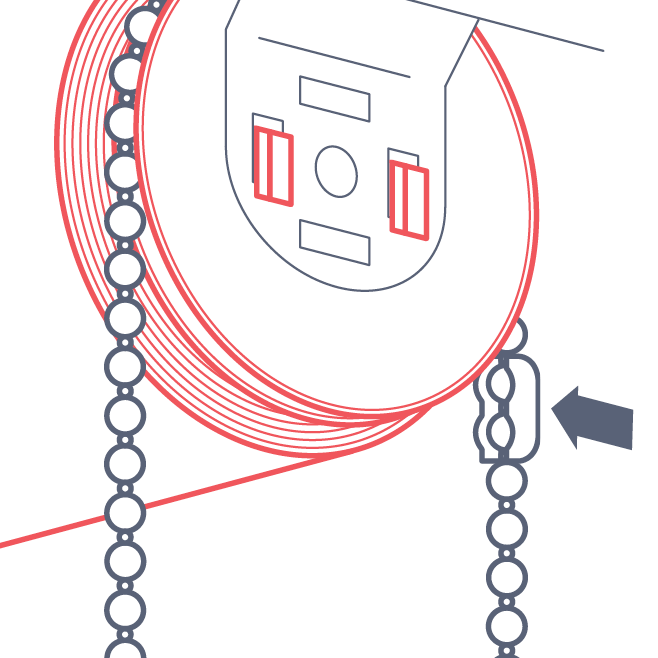

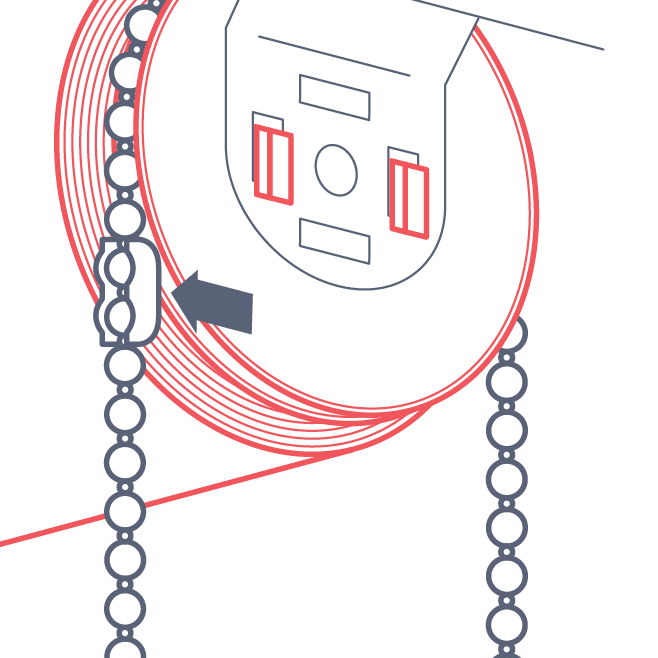

Step 6
2 x ball stops
Attaching ball stops ensures the blind is not wound up or down too far, preventing damage.
Roll the blind to the top of its range, note the position on the chain and attach a ball stop.
Roll the blind to the bottom of its range, note the position on the chain and attach a ball stop.
Step 7
Roll the blind to the top of its range, note the position on the chain and attach a ball stop.
Roll the blind to the bottom of its range, note the position on the chain and attach a ball stop.

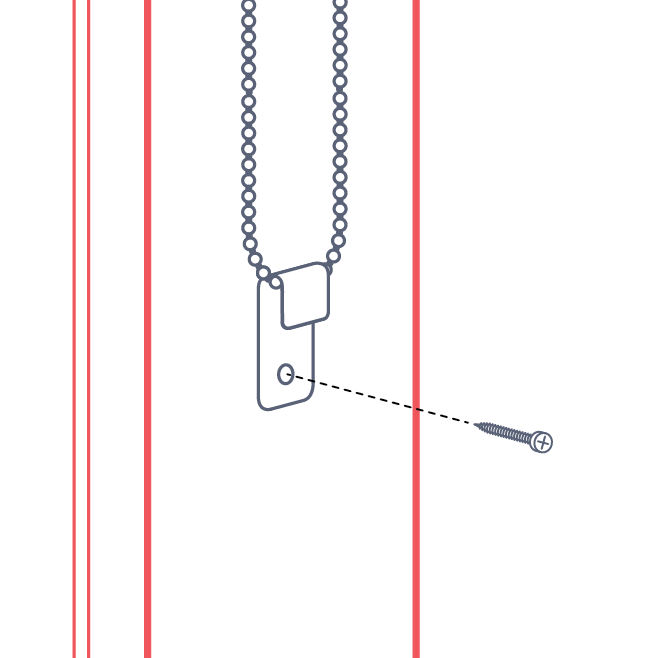

Step 7
1 x child safety tensioner with screw
Place the tensioner over the chain and let hang to determine its fixing position before attaching using the screws provided.
Tip: Don’t pull the chain too tight, leave a little bit of give to make operating the blind easier.
